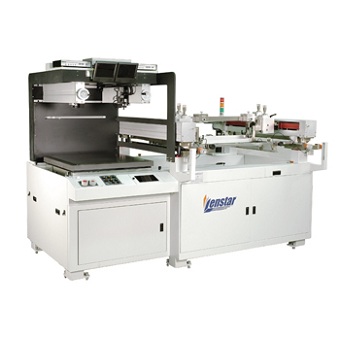

INQUIRYProduct Feature
- Provide the right-left sliding table to improve excellent function and production yield rate.
- Provide CCD examination system, to ensure the location precision of printing material on table is correct.
- The structure of machine is lighter and stronger, and with the top servo motor and drive motor, more stable, quiet, and fast.
- The integrated table made by aluminum, the flatness within ±0.05mm, and the printing evenness is excellent.
- Provide four post locking system on printing device, to ensure thickness of printing membrane accuracy.
- The servo motor for peeling function and high precision digital constant pressure printing head, to showing constant pressure effect completely.
- Operation by touch panel, easy to set up (setting) and operate, the memory of HMI save 100 unit conditions of production, and provide other function, such as safety return to origin, auto detect error system, safety optical grating, Emergency switch, alarm light, etc.
- Optional accessory: antistatic bar, anti-dust cover for optical industry.
Product Specification
| Item | Specification |
|---|---|
| Table dimensions | 700x800mm |
| Printing Area(MAX) | 600x600mm |
| Printing Area(MIN) | 100x100mm |
| Frame Dimension(Max) | 1100x1050mm |
| Frame Dimension(Min) | 800x800mm |
| Printing Pressure | 1-6kg/cm2 |
| Main Power | 3Φ, 220V/380V, 50/60Hz |
| Power Consumption | 3.5kw |
| Air Pressure | 5-7kg/cm2 |
| Air Consumption | 25L/Min |
| Dimension | 2620x1760x1850mm |
| Weight | 1920kg |
